RT-EOC31

DETAILS

Features

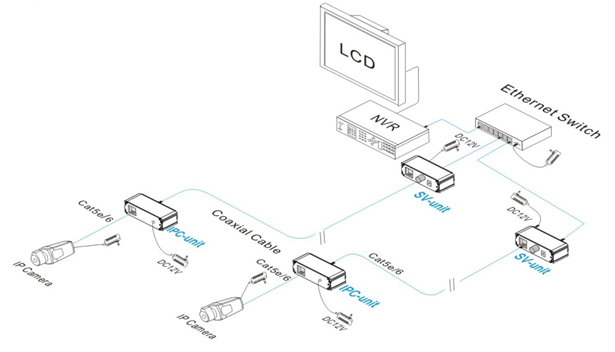

◆ The equipment consists of two parts: SV-Unit and IPC-Unit. SV-Unit has 12V DC port, one RJ45 input port and two output ports: BNC and RJ45; IPC-Unit has two input ports: BNC and RJ45, one RJ45 output port and one 12V DC port;

◆ Adopt advanced transmission technoloy to transmit Ethernet signal up to 1200m through coaxial cable and transmit Ethernet signal up to 700m through network cable;

◆ Ethernet delay less than 1ms; meet point to point application;

◆ Protection: excellent circuit isolation protection, superior product anti-thunder , anti-satic and anti-interference;

◆ Appearance: durable and delicate, meet MIT rack installation standard, working temperature: 0℃～55℃;

◆ Installation: Plug-and-play, no setting required.

AVAILABLE SIZES

Model Number	Active Ethernet over Coax Extender RT-EOC31
Power	Power Supply	Power Adapter
	Voltage Range	DC 12V
	Consumption	< 2W
Ethernet Port	Ethernet Port	EOC: 0--100Mbps Ethernet port:10/100Mbps; transmission bandwidth changes based on transmission distance, please refer to table 1
	Transmission Distance	EOC coaxial cable: 0-1200m EOC network cable: 0-700m
	Transmission Medium	RJ59 coaxial cable and Cat5e/6 cable
Ethernet Exchange	Ethernet standard	IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX
Ethernet Exchange	Ethernet delay	＜1ms
Status	LED Indicator	Input/output ports: power status(RJ45 yellow) network signal transmission(RJ45 green); EOC: indicate cable connection(RJ45 yellow/green
Protection	ESD	1a Contact Discharge level 3 1b Air Discharge level 3 IEC61000-4-2
Protection	Communication Port Anti-thunder Protection	Level 3, Per: IEC61000-4-5
Operation Environment	Working Temperature	0℃~55℃
	Storage Temperature	-40℃~85℃
	Humidity (non-condensing)	0~95%
Mechanical	Dimension (L×W×H)	63.2mm×82mm×25mm
	Material	Aluminum
	Color	Black
	Weight	IPC:134g; SV:134g
